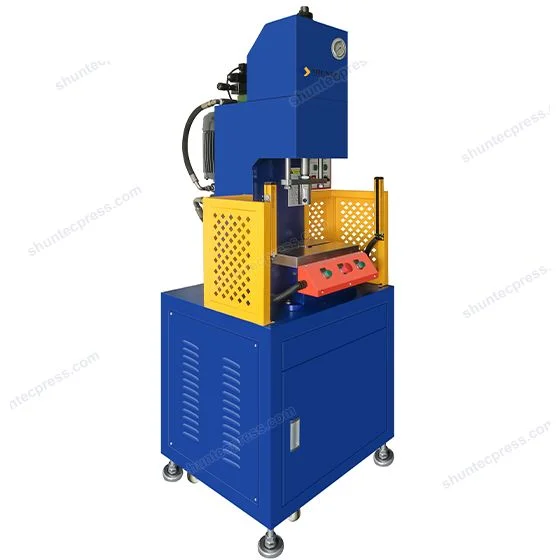

Custom Benchtop Type 3 Ton Small Hydraulic Press Machine
At Shuntec, we take pride in designing and manufacturing custom hydraulic press machines tailored to meet your specific needs. Our latest project, a 3-ton small hydraulic press machine, is a testament to our commitment to quality and precision. Whether you’re looking for a benchtop solution or a more compact option, we have the expertise to deliver a machine that exceeds your expectations in performance and durability.
- Details
- Specifications
Shuntec custom benchtop type 3 ton small hydraulic press machine is custom-designed for our customer from Estonia, for removing disk-shaped sprue of the PA6 injection molding parts. Our customer is a leading manufacturer of the Water purifier. All parameters including tonnage, stroke, open daylight, and bed sizes are customized to best meet customers’ requirements.
Custom Features:
- Benchtop type mounting, with a custom bench height 800 mm above the floor
- Required cylinder stroke 150 mm; Required maximum daylight 200 mm
- Required throat depth 120mm
- Bed platen sizes 350*240 mm with T slot
- Die / tooling connector diameter φ25mm
- Calculated ram speed: Approach 100 mm/s; Return 100 mm/s
- Safety mesh shields on left & right sides
- Light curtains guarding the front opening of the press
- Double start buttons with the protective cover on the front operating side
- Emergency stop button on the front operating side
| Frame style | Benchtop hydraulic press |
| Application | Remove disk-shaped sprue on the PA6 injection molding parts |
| Tonnage | 3 Ton |
| Driven Source | Hydraulic |
| Ship To / Place of Use | Estonia |
| Power Supply | Three-phase AC 380V 50 Hz |
| Intended Use | Water purifiers, household appliances |
