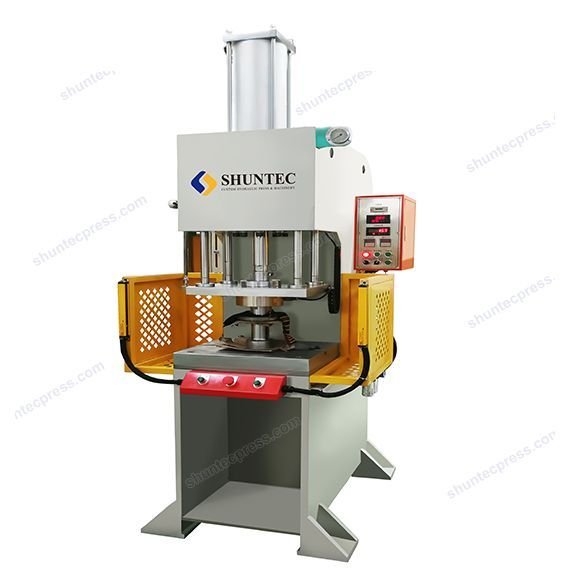

Air Hydraulic Press
Highly Efficient Air-Hydraulic Power for Versatile Metal Forming
Price : ＄3000 - ＄18,000
Shuntec air hydraulic press is an energy-efficient and more cost-effective solution for a variety of applications such as riveting, assembly and press-fit, joining, fastening, crimping, clamping, etc.
| Industry | Typical Processes | User Benefits |
|---|---|---|
| Automotive | – Bearing/bushing insertion – Snap-fitting of plastic parts |
– High force output with lower air consumption – Quick cycle times – Minimal maintenance |
| Aerospace | – Lightweight metal forming – Rivet insertion |
– Precise pressure control – Low noise and minimal vibration – Enhanced operator safety |
| Metalworking | – Small to medium-scale stamping – Punching, flanging, forming |
– Flexible tonnage range – Energy-efficient operation – Consistent force distribution |
| Parameter | Details |
|---|---|
| Warranty Commitment | 3-year full machine warranty + lifetime technical support |
| Global After-Sales | Overseas localized service teams (Europe/USA/Southeast Asia), 24/7 multilingual support (EN/DE/JP/CN) |
| Delivery Lead Time | 30-55 working days (standard models) / 60-90 working days (customized models) |
| Logistics Support | Full coverage of EXW/FOB/CIF/DDP terms, hazardous material packaging provided (IP67 protection) |
Contact a Trusted Air Hydraulic Press Manufacturer Today
Send Inquiry- Machine Highlight
- Machine Specifications
- Machine Options
Machine Highlight
•Small footprint suitable for benchtop light-duty applications
•Quieter, cleaner, and more economical power source
•Modular design, customized to your specifications
•Fast, easy and safe setup and operation
Shuntec Air hydraulic press, also known as air over hydraulic press, is different from the conventional hydraulic press by using a quieter, cleaner, and more economical power source. Air hydraulic press is an energy-efficient and more cost-effective solution for a variety of applications such as riveting, assembly and press-fit, joining, fastening, riveting, crimping, clamping, etc.
We can customize-build the air hydraulic press with a simplified 4-post structure, as well as a 2-post, c frame, and benchtop structure according to your applications and specifications. All air hydraulic presses in Shuntec are built with tough quality standards to ensure years of maintenance-free and reliable operation.
Shuntec offers several standard benchtop type air over hydraulic presses, technical parameters described in the right navigation bar. These standardized benchtop-type press systems can be modified with specific tonnage, stroke, shut height, and bed size to meet your special need.
Machine Specifications
Technical Parameters
| Description | Shuntec-P09 3T | Shuntec-P09 5T | Shuntec-P09 10T | Shuntec-P09 20T | Shuntec-P09 30T |
| Nominal Force | 30 KN | 50 KN | 100 KN | 200 KN | 300 KN |
| Structure | Bench Top / C Frame | Bench Top / C Frame | Bench Top / C Frame | Bench Top / C Frame | Bench Top / C Frame |
| Cylinder Stroke | 120 mm | 120 mm | 120 mm | 150 mm | 200 mm |
| Open Height | 200 mm | 200 mm | 200 mm | 300 mm | 350 mm |
| Bed Table | 400*300 mm | 400*300 mm | 500*400 mm | 500*400 mm | 600*400 mm |
| Ram Table | Rod-guided Available | Rod-guided Available | Rod-guided Available | Rod-guided Available | Rod-guided Available |
| Table Height | 780 mm | 780 mm | 780 mm | 780 mm | 780 mm |
| Closing Speed | 90 mm/s | 90 mm/s | 90 mm/s | 80 mm/s | 80 mm/s |
| Return Speed | 85 mm/s | 85 mm/s | 85 mm/s | 80 mm/s | 70 mm/s |
| Power Supply | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ | 3Phase, 220/380/415/480VAC, 50/60HZ |
| System Pressure | 0.62 Mpa | 0.5 Mpa | 0.7 Mpa | 0.6 Mpa | 0.6 Mpa |
| Machine Approx. Weight | 300 KG | 500 KG | 700 KG | 1.5 Ton | 2.2 Ton |
| Machine Approx. Size | 700*600*1710 mm | 700*600*1760 mm | 800*700*1850 mm | 800*700*1890 mm | 900*800*1950 mm |
Machine Options
• Indexing units
• Automate operation system
• Color HMI
• Linear position sensor
• Load cell
• Interlocked, hinged guards
• Air blast valve with timer and air nozzles
• Pneumatic safety gates
