Heavy-Duty 4 Post Hydraulic Press for Industrial Forming, Stamping and Molding

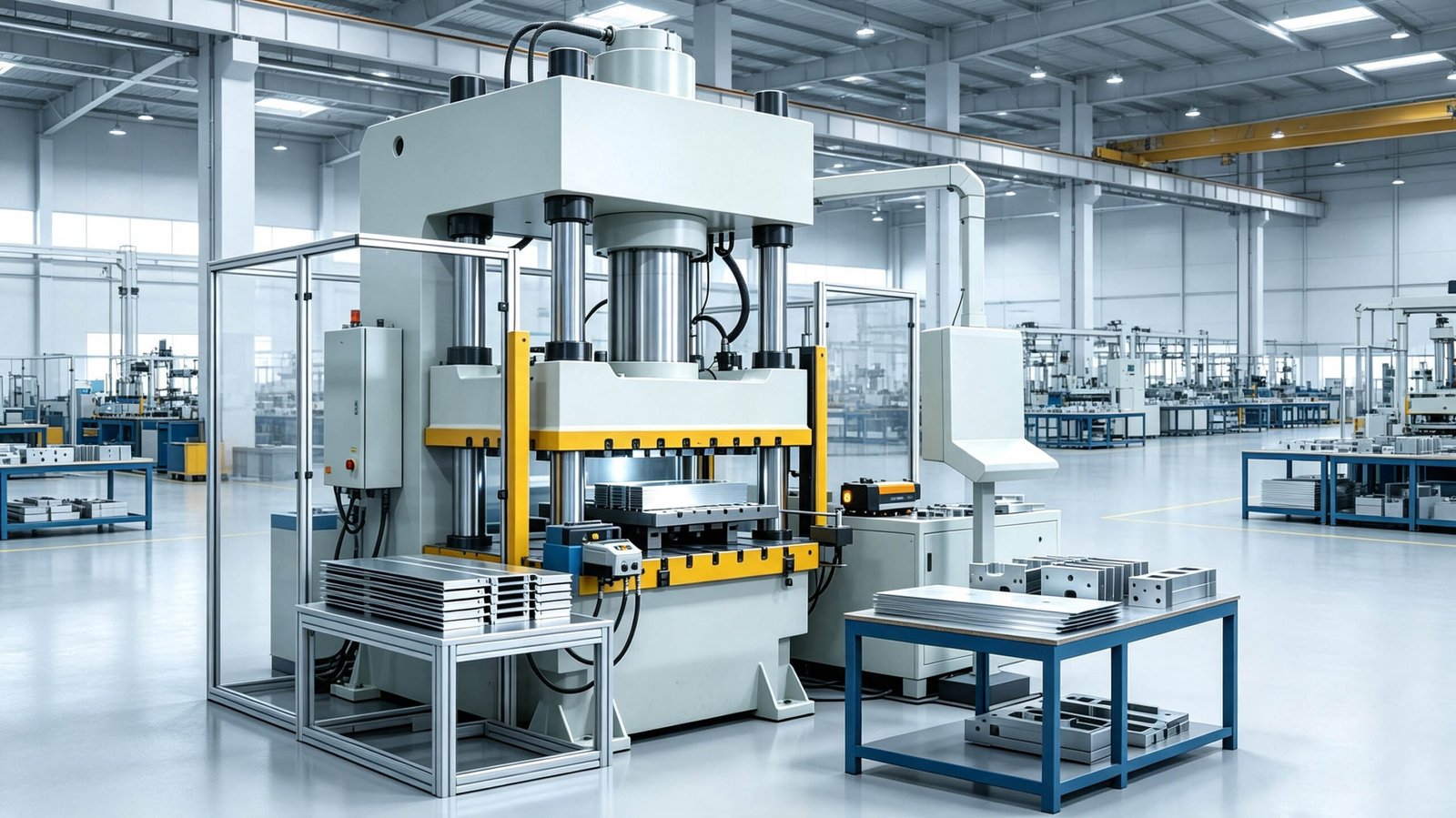

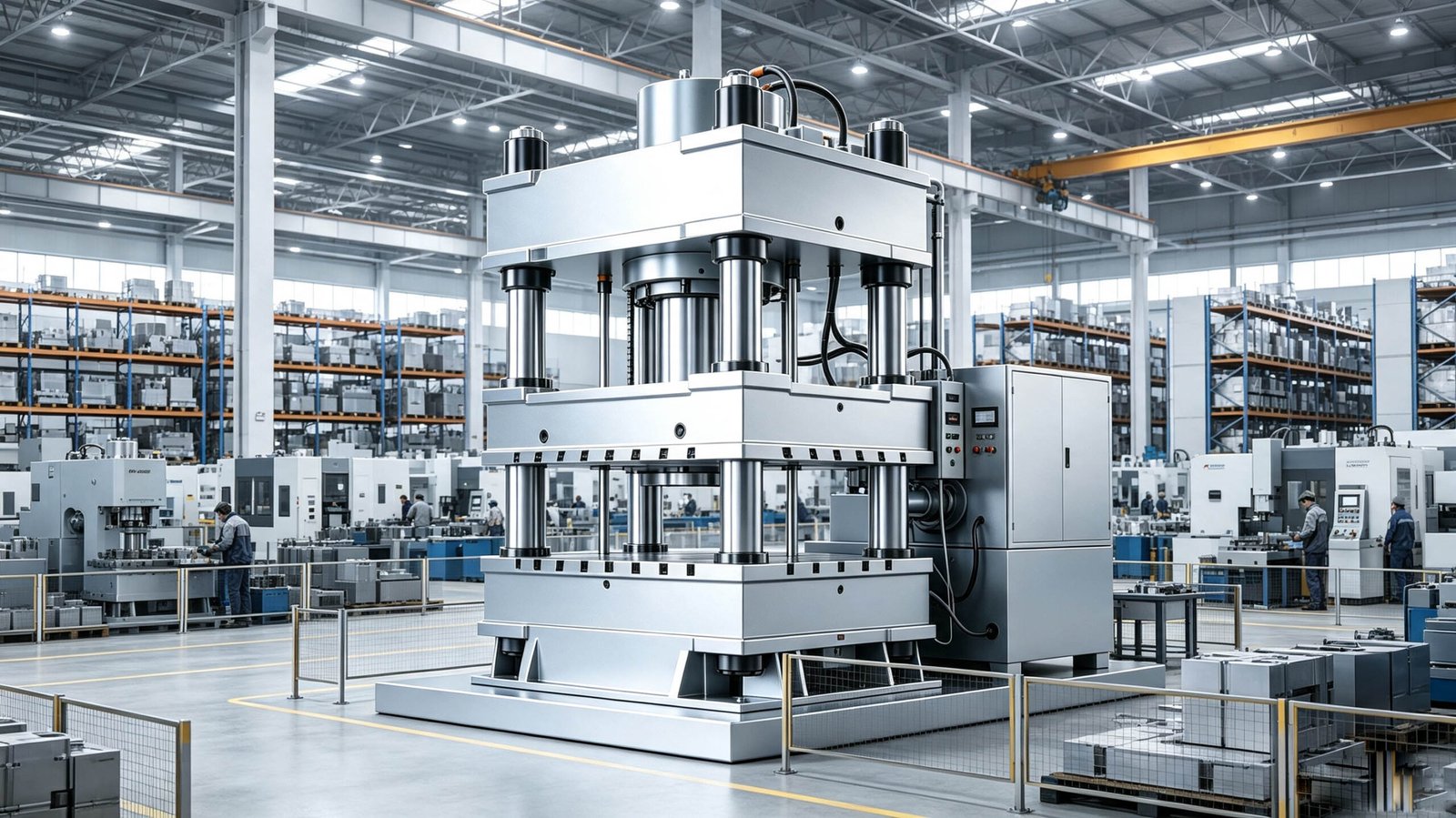

A 4 post hydraulic press, also widely known as a four column hydraulic press, stands as one of the most versatile and essential forming machines in modern industrial production. Designed with four vertical high-strength guide posts, this hydraulic equipment delivers uniform, balanced pressing force across the entire worktable. Thanks to outstanding structural stability, high working precision and flexible parameter adjustment, the 4 post hydraulic press is widely adopted for metal processing, composite material molding, rubber vulcanization, hardware assembly and other production procedures.
Global factory managers, industrial engineering buyers and processing workshop owners constantly search for durable, low-failure hydraulic forming equipment. Compared with single-column hydraulic presses and C-frame hydraulic presses, the four-column structure brings larger effective working area, better parallelism and stronger load-bearing capacity. If your production involves deep drawing, stamping, compression molding or workpiece straightening, a properly configured 4 post hydraulic press will effectively boost product consistency, reduce reject rates and cut long-term manufacturing costs.
Core Structure of Our Industrial 4 Post Hydraulic Press
Every 4 post hydraulic press we manufacture follows rigorous industrial design standards. The whole machine consists of an upper beam, movable sliding plate, fixed worktable, base frame, four guide columns, main hydraulic cylinder, independent hydraulic power unit and electrical control cabinet. All welded components go through stress relief annealing treatment to eliminate internal welding stress and prevent permanent frame deformation under continuous heavy load.
1. Four high-toughness guide posts: Hard chrome-plated surface effectively reduces friction and wear. The four-post layout evenly distributes pressing force and avoids unilateral deflection of the sliding plate during forming.
2. Precision guiding bushings: Low friction coefficient ensures stable vertical movement of the sliding plate and maintains long-term working accuracy.
3. Integrated main hydraulic cylinder: Adopts reliable sealing assemblies to minimize oil leakage and sustain stable pressure holding performance.
4. Independent hydraulic station: Separated from the main machine to reduce heat transfer, equipped with oil cooling and filtering systems for long-shift continuous operation.
5. Modular electrical control system: Supports manual, semi-automatic and fully automatic working cycles to adapt to different production workflows.
Well-matched structural components directly extend the service life of your four column hydraulic press. Inferior hydraulic presses usually use thin steel plates and low-quality guide columns, which easily bend after long-term heavy pressing and cause uneven workpiece thickness, leading to massive waste of raw materials.
Key Advantages of Our 4 Post Hydraulic Press
1.Superior Pressing Precision & Uniform Force Distribution
The symmetrical four-post guiding structure ensures consistent clearance between the sliding plate and fixed worktable throughout the pressing stroke. High parallelism guarantees every area of your mold receives equal pressure. This feature is critical for thin sheet deep drawing, composite molding and precision hardware pressing, where even tiny pressure differences will cause defective finished goods.
2.Wide Range of Tonnage Options
We provide standard 4 post hydraulic presses covering multiple specifications: 50-ton, 100-ton, 160-ton, 200-ton, 315-ton, 500-ton, 800-ton up to 2000-ton. Small-tonnage models suit hardware embossing, assembly and trimming. Medium and large tonnage machines are ideal for thick metal forming, SMC composite molding and auto parts production.
3.Comprehensive Customization Support
We offer full ODM & OEM customization services for all four column hydraulic presses to match unique workshop conditions and production requirements:
- Custom worktable dimensions, pressing stroke and opening height
- Adjustable pressing speed, pressure retention time and slow-down position
- Heating plate installation for carbon fiber, fiberglass, rubber and plastic molding
- Safety upgrades: safety light curtains, protective guards, two-hand operation systems
- Intelligent upgrade: PLC controller, touch screen HMI, data recording and fault alarm function
- Voltage configuration modified to fit local power standards for overseas markets
4.Reliable Hydraulic System with Low Failure Rate
Our hydraulic systems adopt internationally recognized brand core components including hydraulic pumps, directional valves and pressure sensors. The system supports stable pressure holding, automatic pressure compensation and overload protection. Built-in oil cooling and circulation filtering devices keep hydraulic oil clean and stable in temperature, greatly lowering the risk of seal aging and oil leakage under non-stop daily production.
5.Multi-Layer Safety Protection
Safety is always a priority for industrial machinery. Each 4 post hydraulic press comes with standard safety configurations: emergency stop button, upper and lower travel limit switches, hydraulic overload protection and pressure relief protection. Optional safety accessories can be added to comply with different regional industrial safety standards, protecting operators, molds and the machine itself from accidental damage.
Main Industrial Applications of 4 Post Hydraulic Press
Thanks to flexible performance, four column hydraulic presses serve a broad spectrum of industries worldwide:
- Metal fabrication industry: Sheet metal deep drawing, punching, straightening, trimming, embossing and flanging
- Automotive manufacturing: Vehicle housing components, chassis parts, brake assemblies, new energy vehicle battery shell forming
- Composite materials industry: SMC, BMC, carbon fiber, fiberglass and resin composite compression molding
- Rubber & plastic industry: Rubber vulcanization, thermosetting plastic molding, plastic compression forming
- Hardware industry: Hardware stamping, shaft straightening, bearing press fitting and metal part calibration
- New energy industry: Insulation plate pressing, lithium battery component shaping
- Household appliance industry: Metal shell forming for kitchen equipment and electrical devices
Many manufacturers upgrade old single-arm hydraulic machines to 4 post hydraulic presses when expanding production lines, because the four-column design can accommodate larger molds and realize mass continuous production.
Why Partner With Us for Your 4 Post Hydraulic Press
As an experienced Chinese manufacturer specializing in hydraulic forming equipment, we have exported 4 post hydraulic presses to Southeast Asia, Europe, North America, Australia, the Middle East and Latin America. We fully understand the requirements of overseas industrial buyers on machine quality, packaging, documentation and after-sales service.
Before delivery, every hydraulic press undergoes strict no-load testing and full-load pressure testing to verify stability, precision and safety performance. All machines are packed in reinforced export wooden cases to resist collision and moisture during long sea transportation. We provide complete English operation manuals, electrical circuit diagrams, hydraulic schematic drawings and standard spare parts list.
Our professional engineering team provides remote video technical guidance, online fault diagnosis and long-term supply of spare parts. Whether you are a trading company purchasing machinery for resale or a factory owner investing in new production lines, we can offer targeted technical proposals and competitive factory-direct prices.
Selecting the right 4 post hydraulic press is a vital long-term investment for your factory. Cheap, low-quality hydraulic equipment often faces frame deformation, pressure fluctuation and frequent breakdowns, bringing unexpected production stagnation and high maintenance costs. Our four column hydraulic presses balance stable industrial quality and reasonable pricing, making them a cost-effective choice for global industrial purchasers.
If you are searching for a trusted manufacturer of 4 post hydraulic press, do not hesitate to contact our sales team. Kindly share your required tonnage, workpiece size, processing technology and workshop space restrictions. We will provide professional technical solutions, detailed dimension drawings and formal quotation at your convenience.
FAQ
Q1: What is a 4 post hydraulic press used for?
A: A 4 post hydraulic press is widely used for sheet metal deep drawing, precision stamping, metal straightening, composite material molding, rubber vulcanization and hardware component press fitting across many manufacturing sectors.
Q2: Can you customize specifications for the four column hydraulic press?
A: Yes. We customize tonnage, worktable size, stroke, opening height, control system and heating function according to customers’ production technology and mold requirements.
Q3: What safety devices can be equipped on the machine?
A: Standard configurations include emergency stop and overload protection. Optional upgrades include safety light curtains, protective covers, two-hand operation switches and travel limit sensors.
Q4: What after-sales service can overseas customers receive?
A: We supply English operation documents, remote video technical support and long-term spare parts supply. Engineers offer online guidance for machine installation, commissioning and daily maintenance.
