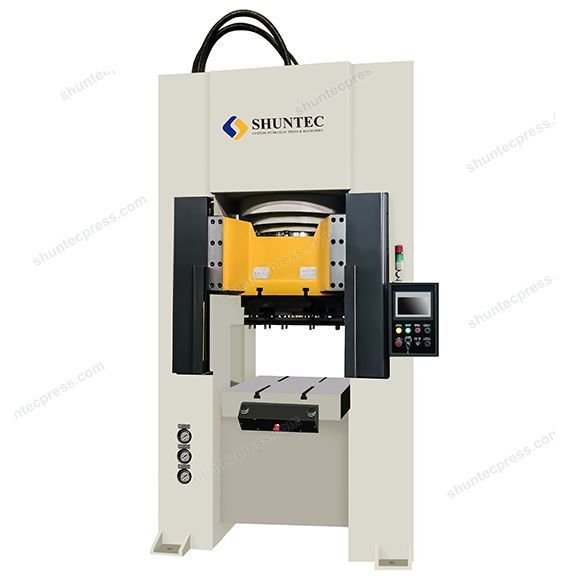

Stamping Press

With 24 years of extensive experience in the stamping industry, Shuntec has developed a specially designed high-speed hydraulic stamping press to serve the stamping world across the globe. The hydraulic stamping presses are featured with high-speed approaching, slow pressing, and fast return.

Have custom requirements? We can customize an Stamping Press according to your needs. SHUNTEC’s Stamping Press are designed for high performance and reliability, offering comprehensive support from design to after-sales service.

We ensure the safe and efficient transportation of our custom hydraulic presses, taking into account their size, weight, and sensitivity.

Our team coordinates with trusted logistics partners to handle every detail, from packing and securing the equipment to international shipping and delivery.

Each press is carefully packaged to prevent damage during transit, and we offer tracking and support throughout the shipping process, ensuring timely and secure arrival at your designated location.

Send Inquiry
Machine Highlight
  • Four-sides access for convenient loading and unloading of dies or tools
  • Modular design, customize to your specifications
  • Superior rigidity and bed to platen parallelism
  • Precision-guided moving slide (platen)

Shuntec Stamping press, also widely known as the general forming press, is the most universal machine equipment in the metalworking industry. It’s widely used in a variety of manufacturing processes such as embossing, perforating, coining & minting, bending, flanging, as well as punching and blanking.

The open frame structure design brings the ability to integrate into the production cells such as robots for automatic production, with stamping speed at 25 counts per minute to maximize your process efficiency. The stamping press machines are guided by quality graphite-impregnated self-lubricated bronze bushings and four solid, chrome-plated posts. The long bearing length provides perfect stability and effective resistance to off-center loading.

recision and PLC programmable control is the key to creating the most cost-effective stamping operation and protecting the stamping tooling and helping you manufacture higher quality parts with less scrap. Each stamping machine in Shuntec can be offered with a 7-inch or 10-inch  comprehensive HMI to freely input, revise, store and load all parameters such as pressure, stroke, speed, dwell time, and daylight. The optional integrated load and position sensors allow the precision control of the ram’s pressure and position.

Specifications

Product Datas

Applicable Industries: Precision stamping,

punching, blanking, embossing,

sheet metal forming, etc

 Certification: CE/UL/ISO
Power Supply: 380V/220V/415V/480V

optional

 Warranty: 18 months
Customizable: Highly customized to your requirements Aftersales Service: Field installation, commissioning

and training, online support,

free spare parts, video technical

support
Production Lead-time: About 30~55 workdays Payment Term: T/T
Packing: Plywood package suitable

for sea transport

 Delivery Term: EXW, FOB,CFR,CIF,DDU

Technical Parameters

Specifications Unit Shuntec-A04-100 Shuntec-A04-200 Shuntec-A04-300 Shuntec-A04-400 Shuntec-A04-500 Shuntec-A04-650 Shuntec-A04-800 Shuntec-A04-1000 Shuntec-A04-1200 Shuntec-A04-1500
Main cylinder

capacity

 ton 100 200 300 400 500 650 800 1000 1200 1500
Main cylinder stroke mm 300 400 400 400 500 500 500 500 500 400
Main cylinder approaching speed mm/s 180 160 160 230 230 170 190 210 190 220
Main cylinder pressing speed mm/s 7-15 8-17 5-12 7-18 8-16 5-12 5-12 8-16 6-15 3-13
Main cylinder return speed mm/s 170 150 130 210 200 170 180 210 160 210
System pressure bar 240 235 240 240 250 248 240 240 250 240
Knock-out cylinder capacity ton 15 30 30 40 40 50 50 60 80 100
Knock-out cylinder stroke mm 200 200 200 200 250 250 250 250 250 200
Daylight open

(slide to bolster)

 mm 600 700 700 700 800 900 1000 1100 1200 1050
Bed table size

Left-Right

 mm 500 700 700 800 800 1000 1000 1200 1300 1400
Bed table size

Front-Rear

 mm 500 700 700 800 800 1000 1100 1200 1300 1400
Motor power KW 8.6 16 23.6 34.6 34.6 37 60 74 90 110
Overall dimension Left-Right mm 1250 1680 1680 2600 2650 2940 3000 3660 3800 4150
Overall dimension Front-Rear mm 1430 1780 1780 2100 2100 2100 2300 2450 2500 2680
Overall dimension Height mm 2850 3480 3500 3700 4050 4100 4320 4560 4720 4820
Machine Options

• Top-mounted hydraulics

• Anti-tie-down, anti-repeat controls with ring guards

• Safety photoelectric light curtain

• Safety interlocked, hinged guards on the 3-sided door

• Hydraulic center ejection

• Air blast valve with timer and air nozzles

• Removable base

• Portable Operator Console

• Color HMI

• Linear position sensor

• Load sensor

• Automatic tie bar lubrication

• T-slotted moving and bed platens

• 8-point gib-guided frame structure with superior rigidity
