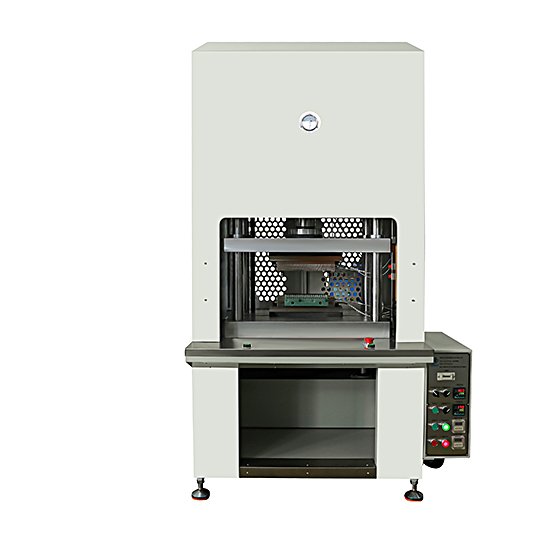

Cotton Swab COVID-19 Testing Throat Swab Hot Forming Press

Product Description
Frame style 4-post hot forming hydraulic press
Applicationcotton swab COVID-19 testing throat swab hot forming
Tonnage5 Ton / 10 Ton
Driven SourceHydraulic
Ship To / Place of UseMexico
Power Supply Three-phase AC 220V 60 Hz
Intended UseMedical apparatus and instruments
Share:

Shuntec's cotton swab COVID-19 testing throat swab hot forming press is a custom-designed 4-post hydraulic press for our customers from Mexico. The application of the machine is to quickly make the cotton swab throat swab for COVID-19 testing. All parameters including tonnage, stroke, open daylight, and bed sizes are customized to best meet customers' requirements.

Custom Features of COVID-19 Testing Throat Swab Hot Forming Press:

  • 4-post frame structure with rear-mounted hydraulic system
  • With a custom bed table height 700 mm above the floor
  • Required cylinder stroke 200 mm; Required maximum daylight 300 mm
  • Bed platen sizes 450*240 mm with T slot
  • With spared electric heaters and thermocouples to work with the forming mold
  • Omron heating temperature controller, with 300 degrees centigrade maximum heating temperature
  • Calculated ram speed: Approach 120 mm/s; Pressing 10 mm/s; Return 120 mm/s
  • Safety mesh shields on left & right & rear sides
  • Safety light curtains guarding the front opening of the press
  • Double start buttons with the protective cover on the front operating side
  • Emergency stop button on the front operating side
