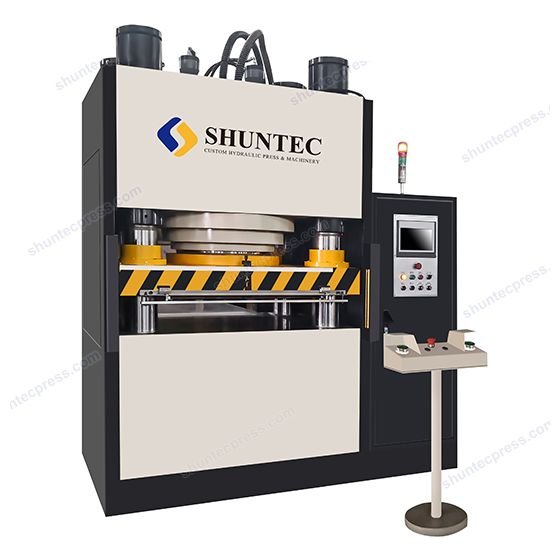

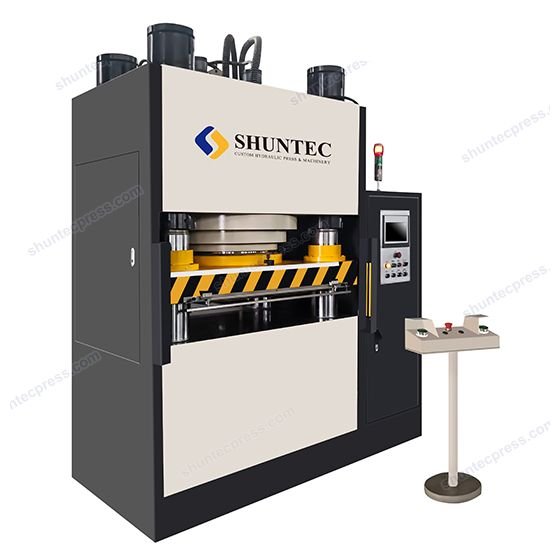

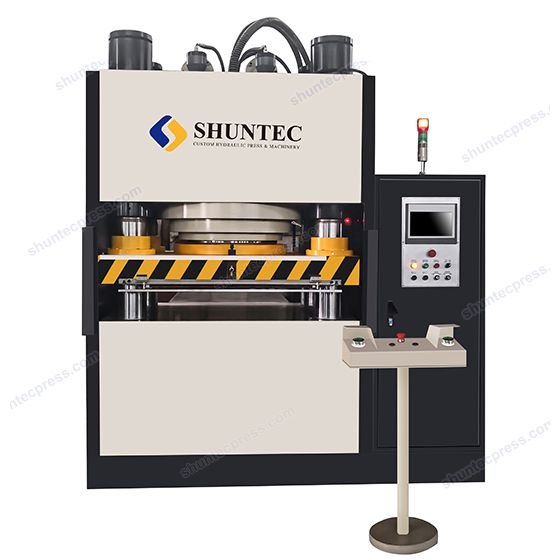

4-Post 600 Ton 1000-Piece Jigsaw Puzzle Cutting Machine

Product Description
Frame style4 post press
Application1000 pieces jigsaw puzzle die cutting, 500 pieces jigsaw puzzle die cutting
Tonnage600 Ton
Driven SourceServo-hydraulic
Ship To / Place of UseUSA
Power SupplyThree-phase AC 230 60 Hz
Intended UseJigsaw puzzle industry, printing industry
Share:

The Shuntec 4-post 600-ton 1000-piece jigsaw puzzle cutting machine is specially designed and built for die cutting 1000 jigsaw puzzles. The press is equipped with the servo-hydraulic control system, which is a fully closed-loop digital control system for pressure and position control. This servo-hydraulic puzzle cutting machine adopts a four-post tie-rod frame structure, ensuring maximum rigidity, and minimizing deflection of the entire machine construction. It's an ideal working platform with perfect precise bed-to-ram parallelism. The high-efficiency tie-rod lubrication system and the oil cooler can bring the machine the capacity of 24-hour non-stop production.

Compared to the conventional hydraulic press, the advances of the servo-hydraulic puzzle cutting press machine are obvious:

  • First of all, much faster approaching,  pressing, and return speed
  • Secondly, all speeds are adjustable during the whole stroke
  • Furthermore, pressure repeat accuracy: ±1%
  • 30%~60% lower energy consumption
  • Much less noise level
  • All parameters programmable on the central color touchscreen
  • Finally, the higher degree of reliability and less need for maintenance during the entire lifetime

Custom Features:

  • 100mm diameter chrome housing posts with graphite impregnated bronze bushings for superior ram guidance and rigidity
  •  Required cylinder stroke 200 mm; Required maximum daylight 200 mm
  • Plat moving and bed platens, 850*800 mm between tie bars
  • Calculated ram speed: Approach 180 mm/s; Pressing 15 mm/s; Return 180 mm/s
  • Hinged safety guards on left-right sides
  • Light curtains guarding the front and rear opening of the press
  • Automatic tie bar lubrication
  • Main electric component: Schneider
  • Main hydraulic valves: Rexroth
  • PLC: Siemens
  • Pressure & Position transducer for closed-loop control
  • Safety operation console
  • Mold locking device with slide rails
  • Touch-trigger-return protect device on front and rear side of the press

Additional Options

  • Shuttle table that can move in and out of the bed platen
