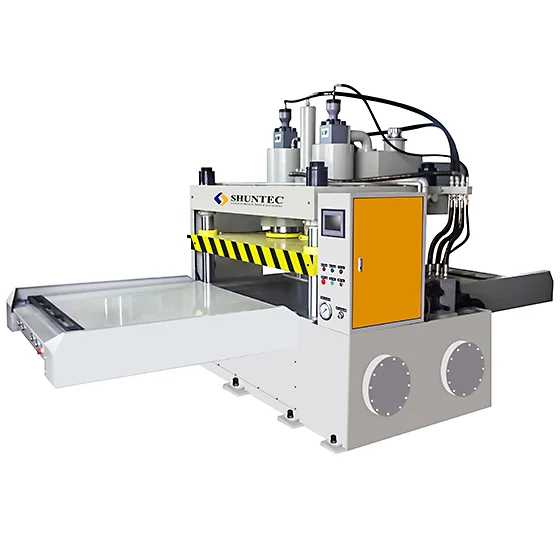

4-Post 200 Ton Hydraulic Die Cutting Press with Double-Sided Shuttle Table
At Shuntec, we’re proud to showcase our 4-Post 200 Ton Hydraulic Die Cutting Press with a Double-Sided Shuttle Table. This powerful machine is a testament to our commitment to precision and efficiency, designed to handle the most demanding cutting tasks with ease. With its robust structure and advanced features, it’s an essential tool for any production line requiring consistent, high-quality results.
- Details
- Specifications
Shuntec-A01 4-post 200 ton hydraulic die cutting press is a custom-designed beam cutting press for our customers from Japan and the USA. The application of the press is to quick die-cut automobile leather such as automobile seat leather and interior leather. All parameters of the hydraulic die cutting press including tonnage, stroke, open daylight, and bed sizes can be customized to best meet your requirements.
Custom Features of 200 Ton Hydraulic Die Cutting Press
- Servo hydraulic system
- 4-post frame structure with double-sided shuttle table
- With a custom bed table height 800 mm above the floor
- Required cylinder stroke 300 mm; Required maximum daylight 300 mm
- Shuttle table sizes 1500*1200 mm, flat platen without any T-slot or screwed holes
- Siemens PLC control
- Siemens 10-inch HMI, the technical recipes of the front and rear cutting can be set separately, according to the different requirements of cutting at each side
- Calculated ram speed: Approach 140 mm/s; Pressing 10 mm/s; Return 140 mm/s
- Safety mesh shields on left & right & rear sides
- Safety light curtains guarding the front and rear opening of the press
- Double start buttons on the front and rear operating side
- Emergency stop button on the front and rear operating side
| Frame style | 4-post |
| Application | Quick die cut the automobile leather such as automobile seat leather and interior leather |
| Tonnage | 200 Ton |
| Driven Source | Servo-hydraulic |
| Ship To / Place of Use | Japan, USA |
| Power Supply | Three-phase AC 230V 60 Hz |
| Intended Use | Automobile |
